MOES Tuya ZigBee Smart Knob Thermostat Star Ring Series Temperature Controller Water Boiler Electric Heating With Alexa Google
BY MOES

Star Ring Smart Knob Thermostat

Consistent Elegance in Star Ring Series

APP Remote Control

Voice Control

Weekly Programmable Function

Display Panel Supports 9 Languages

Notice before purchase

NOTE: ZigBee gateway is required, please purchase in addition.

0%-100% Adjustable Standby Screen Brightness

The brightness of the standby screen can be adjusted to 0-100% on the APP or the product screen. The product has the backlight effect of the ambient light, and the ambient light can be set to on/off.

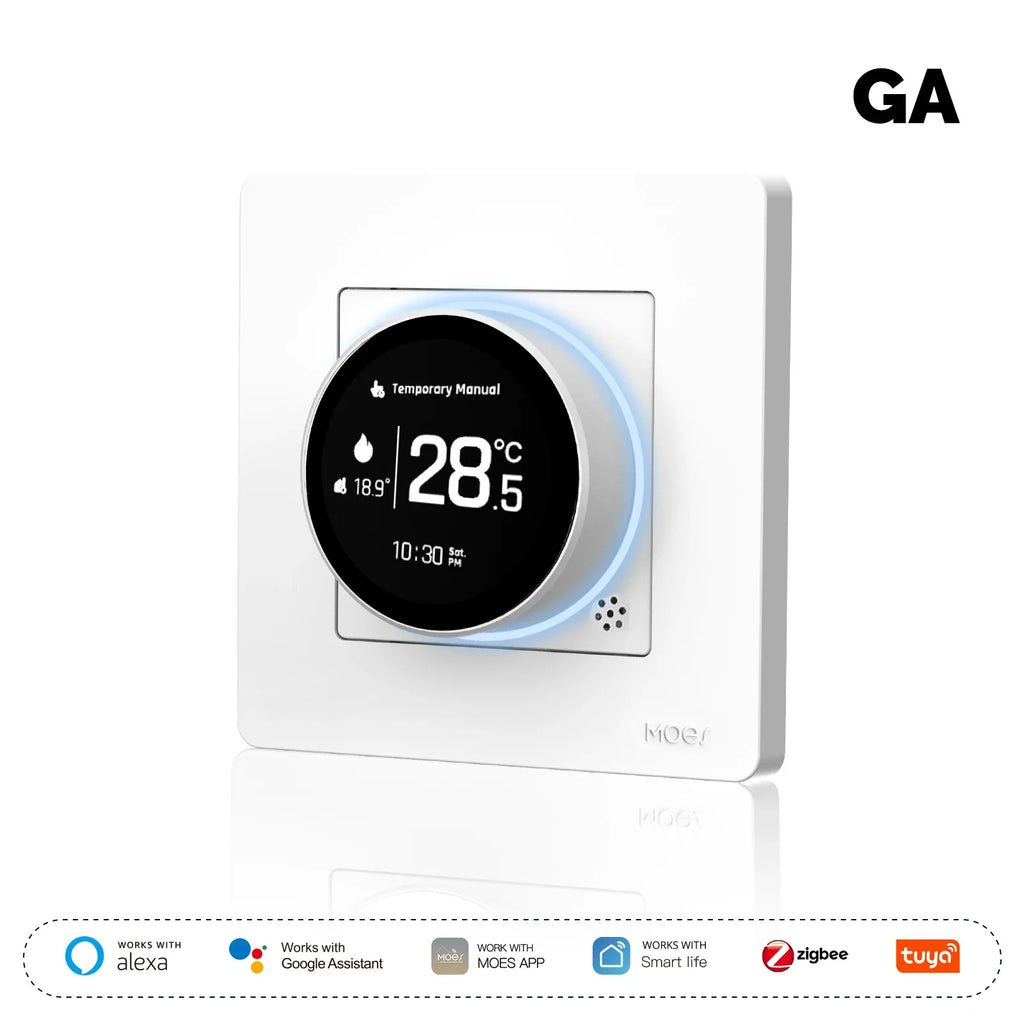

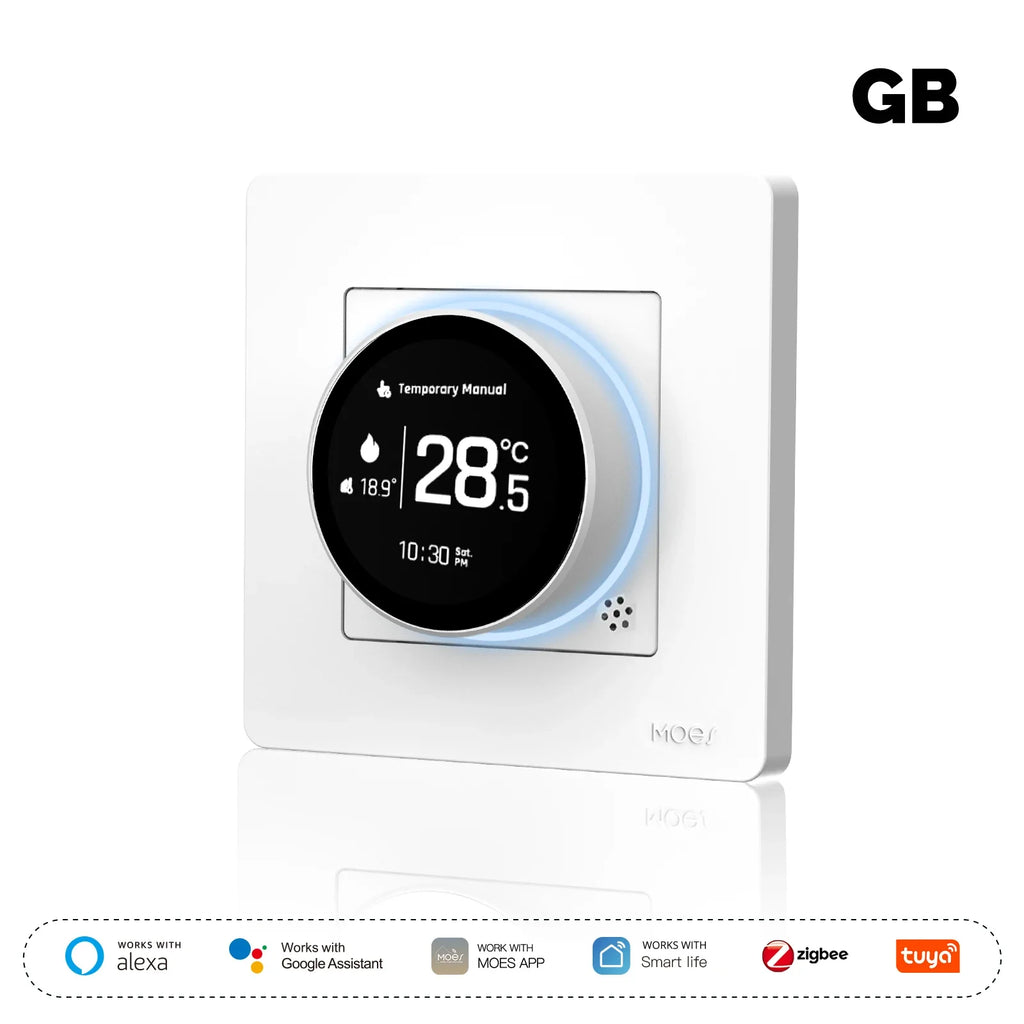

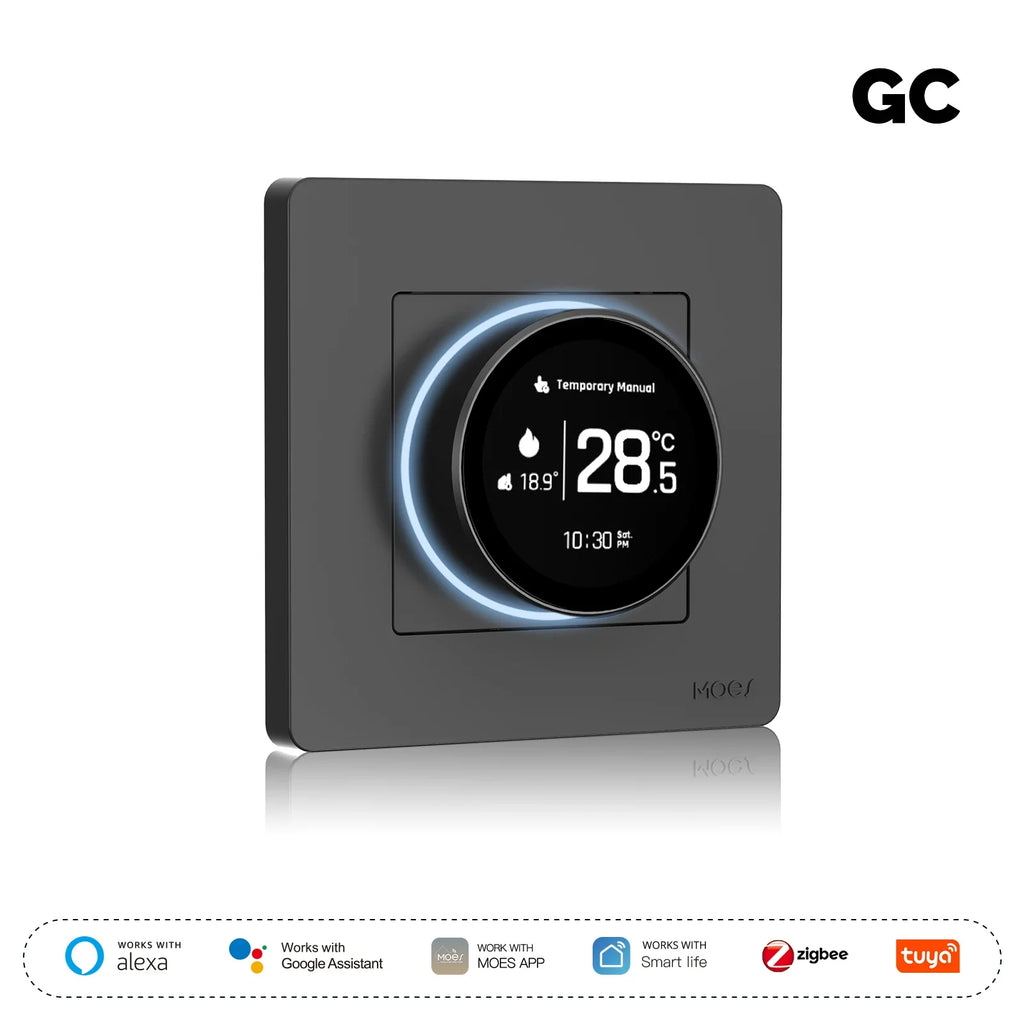

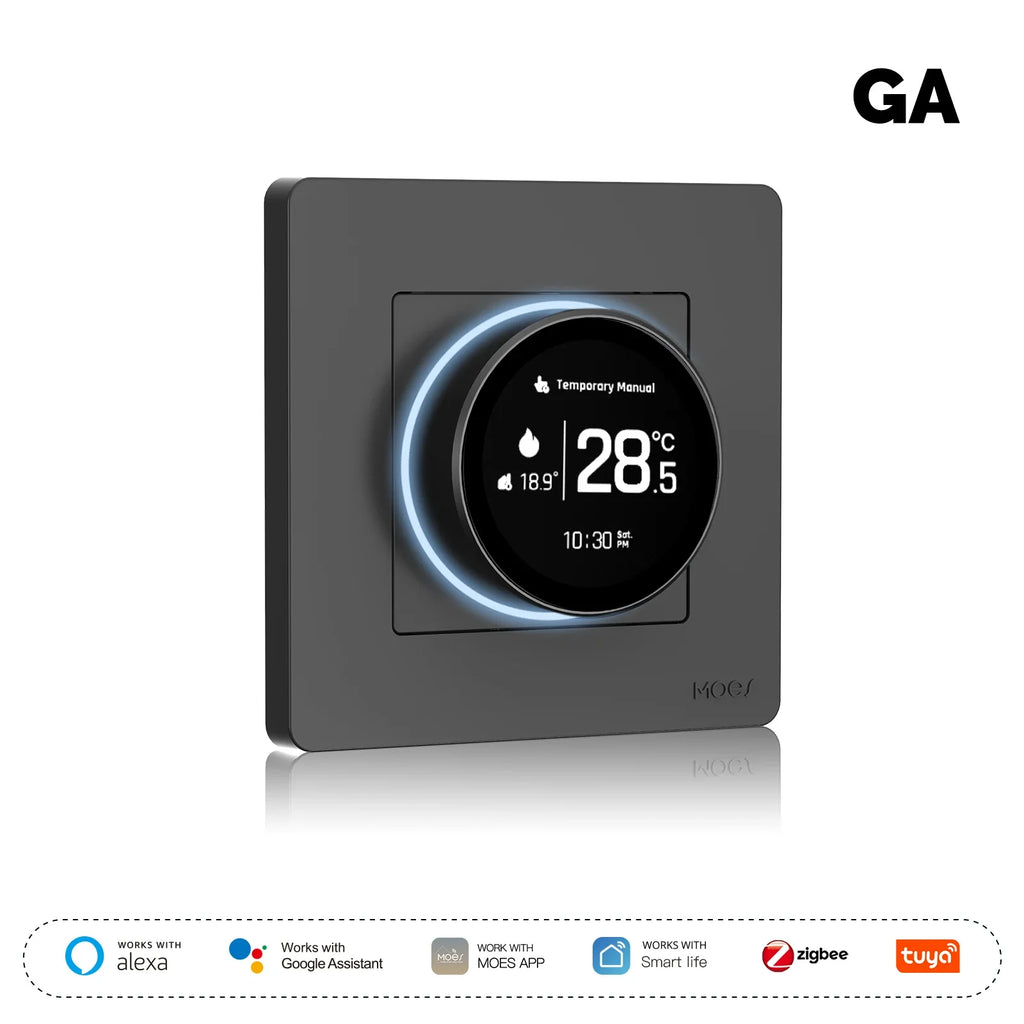

Three Versions for Different Types of Heating

The three products are designed for different heating methods: water heating, electric heating, and boiler. Please choose the corresponding GA, GB, or GC thermostat according to your home heating method.

Child Lock Function

In order to avoid the danger or waste of electricity caused by children touching the switch by mistake, the child lock can be activate by App.

Smart Linkage

The smart home linkage advantage brought by smart thermostat is incomparable to traditional temperature control. Assuming that there is a sensor linkage with the human body, when it senses that a person has left the room, the smart temperature control and smart lights will automatically turn off, which also has the effect of energy saving.

Energy Saving Mode: Save Up to 20% on Your Electricity Bills

After turning on the energy-saving mode, the heating temperature will be adjusted to the energy-saving temperature you set in the APP. Statistics show that it can save you up to 20% of electricity bills.

Temperature Calibration

In case of the temperature variation between the floor and the air, you can set the calibration value by App, to make sure the final temperature reaches your ideal value.

Protect from Excessively High or Low Temperature

After the high temperature protection function is turned on, when the temperature reaches the set peak, the thermostat will automatically close to protect the safety of the temperature control system and the family; When the low temperature protection function is turned on, the thermostat will automatically turn on when the temperature is too low to ensure that your home is maintained at a suitable and safe temperature.

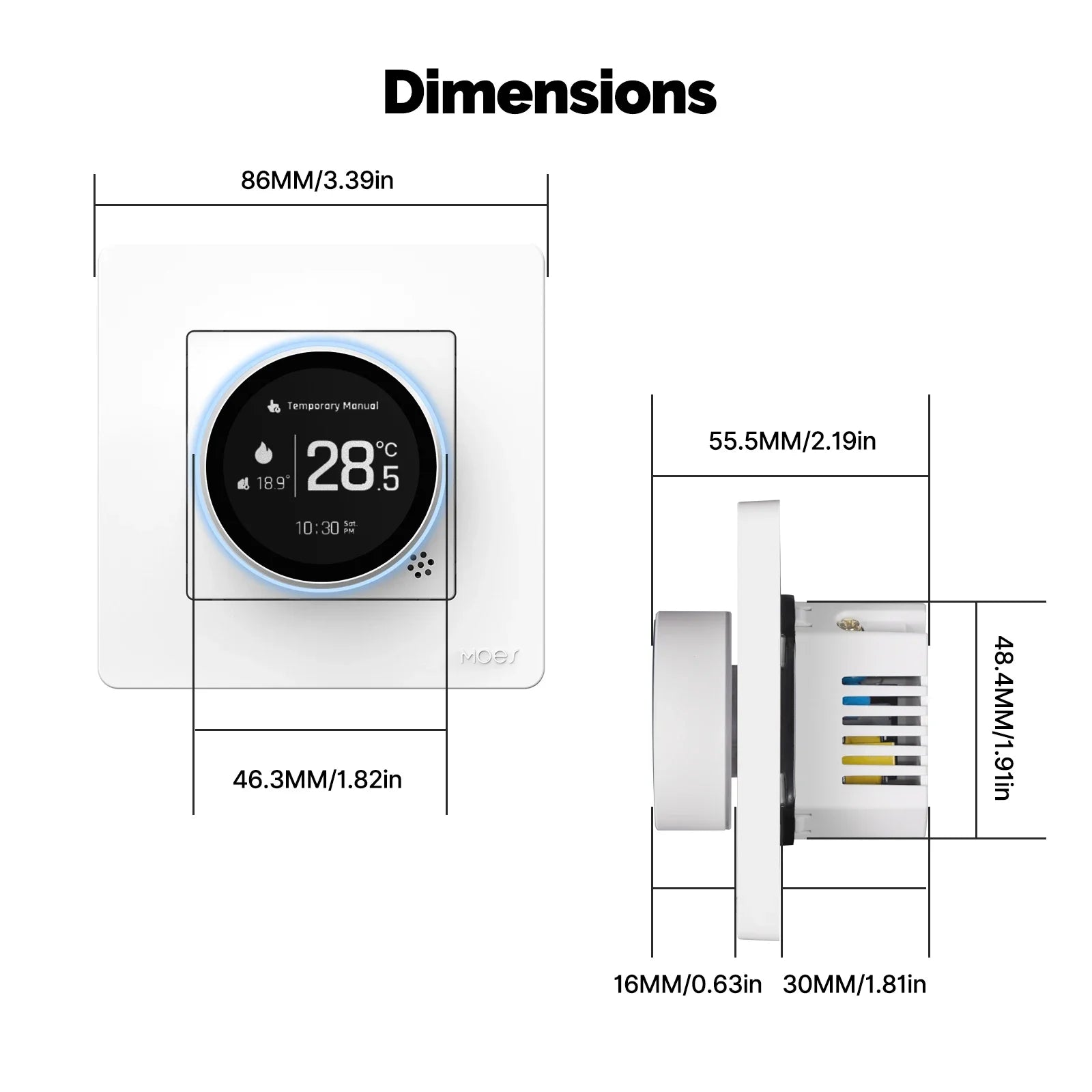

Dimensions

Technical Specifications:

Voltage / Frequency:95-245V AC, 50/60Hz

Current Load:5A (water heating, gas boiler)16A (electric heating)

Communication Method:ZigBee

Module Model:ZT3L

Max RF Power:+20dBm

Operating Frequency:2.405-2.480GHz

Zigbee Standard:IEEE 802.15.4

Sensor:NTC3950, 10K

Accuracy:±1℃

Set Temp. Range:5~35℃

Display Temp. Range:5~99℃

Storage Temp.:0~45℃

Power Consumption:<1.5W

Timing Error:<1%

Shell Material:PC +ABS (Fireproof)

Protection Class:IP20

Packing List

Smart Thermostat *1

External temperature sensor cable (For GB version only) *1

Manual *1
